High-speed laser writing method could pack 500 terabytes of data into CD-sized glass disc
— Read on phys.org/news/2021-10-high-speed-laser-method-terabytes-cd-sized.html

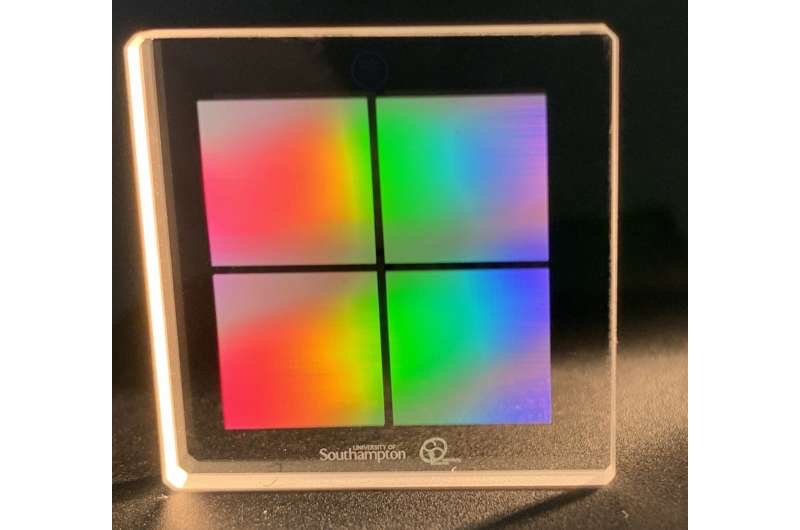

Researchers have developed a fast and energy-efficient laser-writing method for producing high-density nanostructures in silica glass. These tiny structures can be used for long-term five-dimensional (5D) optical data storage that is more than 10,000 times denser than Blue-Ray optical disc storage technology.

“Individuals and organizations are generating ever-larger datasets, creating the desperate need for more efficient forms of data storage with a high capacity, low energy consumption and long lifetime,” said doctoral researcher Yuhao Lei from the University of Southampton in the UK. “While cloud-based systems are designed more for temporary data, we believe that 5D data storage in glass could be useful for longer-term data storage for national archives, museums, libraries or private organizations.”

In Optica, Optica Publishing Group’s journal, Lei and colleagues describe their new method for writing data that encompasses two optical dimensions plus three spatial dimensions. The new approach can write at speeds of 1,000,000 voxels per second, which is equivalent to recording about 230 kilobytes of data (more than 100 pages of text) per second.

“The physical mechanism we use is generic,” said Lei. “Thus, we anticipate that this energy-efficient writing method could also be used for fast nanostructuring in transparent materials for applications in 3D integrated optics and microfluidics.”

Faster, better laser writing

Although 5D optical data storage in transparent materials has been demonstrated before, writing data fast enough and with a high enough density for real-world applications has proved challenging. To overcome this hurdle, the researchers used a femtosecond laser with a high repetition rate to create tiny pits containing a single nanolamella-like structure measuring just 500 by 50 nanometers etch…
